Multiscale simulation

Task 4 - electrophysiological simulation

In this example we explore the effect of spatial resolution of the numerical method in the simulation of a monodomain electrophysiology simulation.

  1. Run MAP Client, choose File ‣ Open and select HOME/projects/mapclient-workflows/DTP-Simulation-Task4.
  2. This simple workflow should look similar to that used in task 1 above (Fig. 16). The workflow is pre-configured so there is no configuration required.
  3. Click the Execute button and you should get a widget displayed as per Fig. 23.

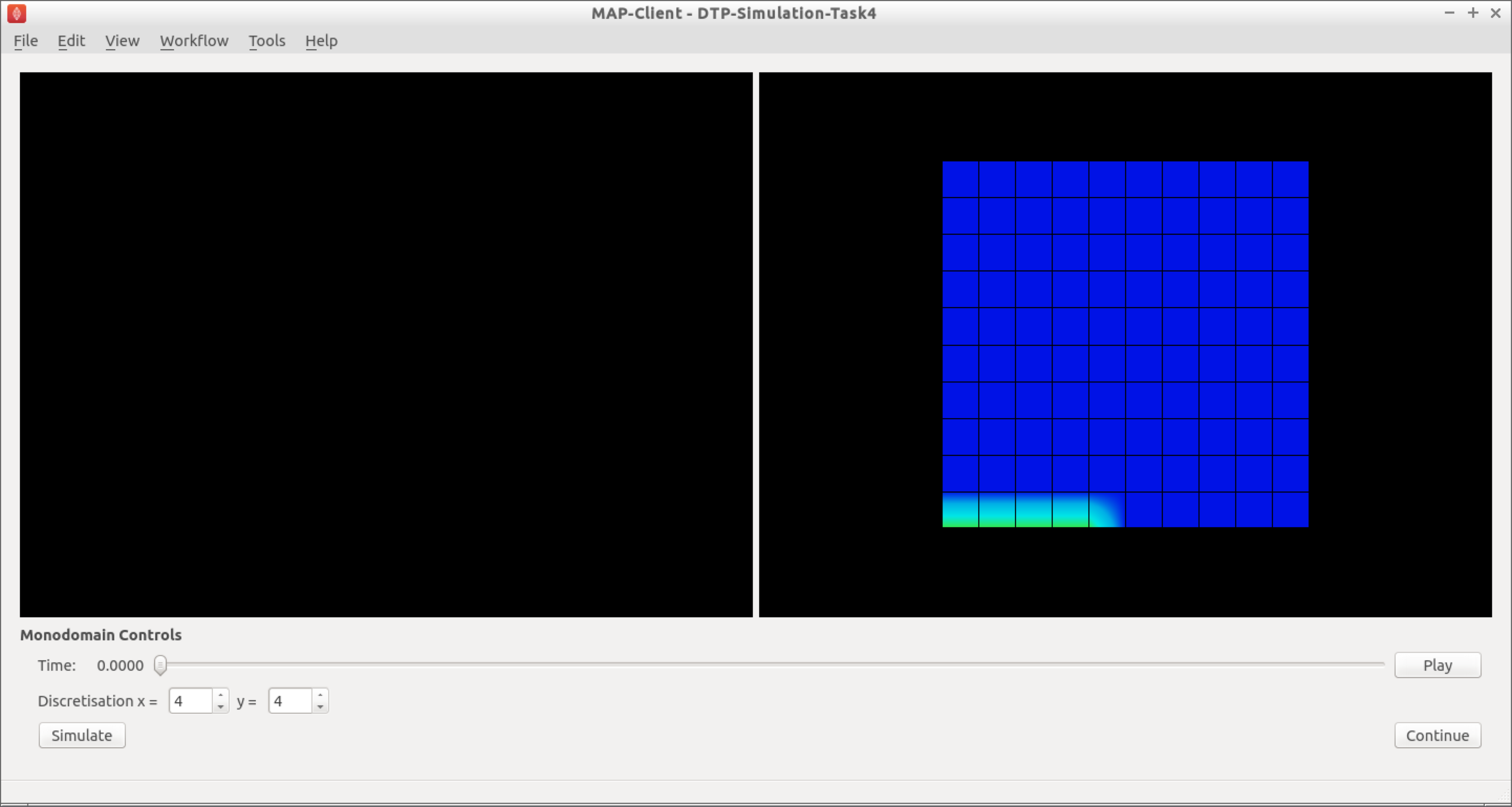

Task 4 GUI.

Fig. 23 The user interface in this task initially shows a “converged” solution on the right. The user is able to set the discretisation of the finite element mesh using the widgets at the bottom.

  1. You can now investigate the effect of changing the spatial resolution. Example results are shown in Fig. 24.
Task 4 results.

Fig. 24 Simulation results for a 2x1 mesh.
